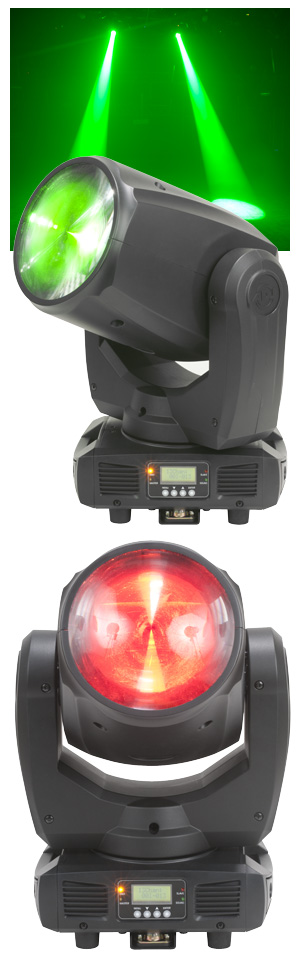

Inno Beam LED

Take your lightshow to the next level with this energy-efficient LED Beam Moving Head

Moving head beam effects have become a widely used ‘go-to look’ for the lighting designers on large concert tours and big-budget TV shows over recent years; however these effects are now within the grasp of smaller production companies, mobile entertainers and medium-sized venues. Continuing to bolster the reputation of our intelligent Inno Series, the compact Inno Beam LED will give you a professional, razor-sharp beam effect at an inexpensive price, allowing you to take the killer atmosphere from the live concert circuit and apply it to the confines of your club or mobile show.

With this fixture, we’ve really pushed the boundaries of what an LED moving head should be by using an incredibly bright 80W LED source to project eight vibrant colors plus white at a tight beam angle of 6-degrees. This combination gives you powerful, tight color beams with which to create spell-binding lightshows to mesmerize your audiences.

Thanks to separate GOBO and color wheels, you can achieve endless combinations of GOBO pattern and color, and the fixture’s 8-facet prism puts fascinating effects in the palm of your hand. The laser cut GOBO wheel features four GOBOs as well as four beam reducers to provide you with further control over the shape and size of the beam. This choice of beam size makes for exciting effects as well as simple pin-spotting; meanwhile an optional frost filter can also be applied to give a softer edge to the beam. Furthermore, GOBO shake mode allows for even added lightshow-enhancing effects and 0-100% dimming allows for total control over brightness. The Inno Beam LED also offers five different dimming curves, selectable via DMX, and a high speed shutter that allows for slow to fast strobing and pulsing.

You can control the fixture via three operational modes: DMX-controlled, Sound Active (with 4 built-in shows) or Internal Show mode. Using DMX mode you will have complete control over the unit’s movements, effects and an array of colors ranging through red, orange, yellow, green, two shades of blue, even magenta and pink, as well as a split color option, and a fast-slow and slow-fast rainbow effect. There are two DMX channel modes (12 or 14 channels) with the 14 channel mode allowing precise control over 16-bit fine pan and tilt at 540 and 210-degrees, respectively.

For a simple, but hugely effective synchronized lightshow, multiple Inno Beam LED units can be linked together for Master/Slave operation, in either Sound Active or Show Mode, using standard XLR-XLR cables. To add variety, a pan/tilt inversion mode can then be used to make selected heads produce contrasting movements and effects to generate an even more professional looking lightshow. If you’d like an element of control, without the hassle of DMX programming, the optional add-on of an ADJ UC3 easy-to-use controller provides command over operational mode, built in shows, strobing, color and GOBO selection, as well as blackout.

The Inno Beam LED is lightweight, compact and extremely portable, making for easy set-up and transportation. With a low power draw of 129W at maximum output, the Inno Beam LED is also energy-efficient and runs cool. Daisy-chaining is a breeze with IEC AC in/out connections on the rear allowing up to three Inno Beam LEDs to be linked at 120V and six fixtures at 230V.

So, if you want to transfer the spellbinding atmosphere created by the professional concert lightshow to a smaller, highly portable setup then the compact, powerful Inno Beam LED is the fixture for you. A versatile unit, offering unbeatable power and razor-sharp beams, the Inno Beam LED gives you incredible effects with a minimal price tag.

The Inno Beam LED is available now from ADJ USA, and available mid May 2014 from ADJ Europe.

Get a ‘First Look’ at the Inno Beam LED in this video:
